41.AV.01.1105.03

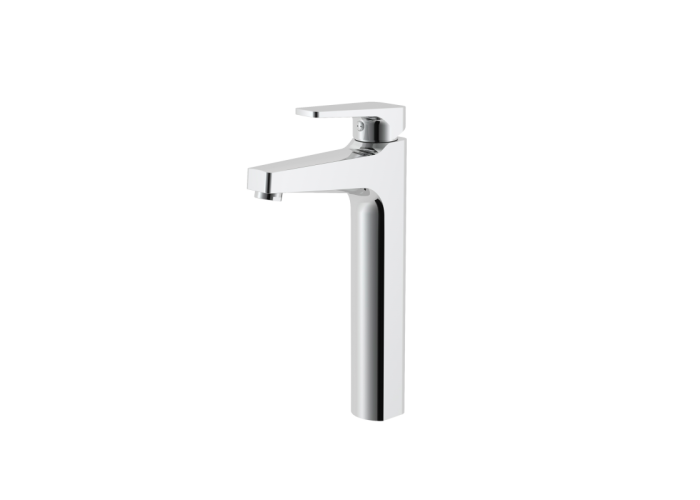

Asani touch faucet code: 1105

Code: 41.AV.01.1105.03

Thương hiệu: ASANI

1. Origin
ASANI brand sanitary ware products are owned by AMY GRUPO.
2. Technical standards:
All ASANI sanitary ware products meet the technical requirements of Vietnam standards such as requirements on appearance ; product size deviation, copper content requirements ( Cu), lead content requirements (Pb), ... and performance requirements.

Code : 41.AV.01.1105.03
Characteristics:
· Warranty (copper body) 5 years.
· Elegant and modern design.
· Copper (Cu) alloy main material has high antibacterial ability.
· Valve Cartridge is anti-scale, durable and smooth operation.
· Durable internal structure with 3mm faucet body thickness.
Specifications:
· Material c opper alloy with copper (Cu) accounted for 61%.
· Nickel coating thickness is ≥ 12μm, Chrome plating layer is ≥ 0.3μm.
· Strong water flow pressure: Min: 0.05 Mpa and Max: 0.75 MPa.
· Water mode: Hot and cold.
Accessories:
· Faucet body.
· Showerhead .
· Shower piping .
· Others: shower holder , decorative cover shower, O –ring , rubber gasket...

Địa chỉ: AMY GRUPO

Address: Lot 1, Lien Hoa, Lien Son , Thai Hoa IZ, Hoa Son Town, Lap Thach Dis, Vinh Phu Prov.

Hotline: 0211 2481 889

1.Notes on installation
· Water temperature in the range ~ 40C - 900C. Maximum recommended water temperature ~600C.
· Maximum test water pressure > 1.75 Mpa (Static pressure). Recommended water pressure ~ 0.1 – 0.75 Mpa (Dynamic pressure).
2.Notes when in use:
· Using ASANI products with clear origin and genuine distribution at agents and distributors nationwide;
· Carefully read the installation instructions, product use and product warranty policy;
· Ensure the water supply and drainage system conforms to the technical characteristics and installation standards of the product;
· Do not place the product in a highly corrosive environment (acid, salt, alkaline) or use a water source that does not meet quality standards;
· Do not clean and maintain the product by rubbing hard objects, inappropriate rags or using detergents and chemicals on the surface of the product.
· Do not arbitrarily modify the design or change the function of the product;
· Do not repair or replace components or accessories that are not ASANI's or recommended by AMY GRUPO yourself;
· The hot water supply side of the faucet has a high temperature, avoid direct contact with metal surfaces because it can cause burns.
· Pay attention to install the right side of hot and cold water supply, avoid confusion that can easily cause burns.
